Product Feature Product Comparison Core Technology Whole Structure IOT Technology Application Scenarios Product Recommendation

Product Feature

High efficiency Energy saving

Compared with traditional Roots blower, it can reduce power consumption by more than 30%

Simple operation Intelligent control

Intelligent, user-friendly touch screen, with 5 operating modes and 5 protective functions.

Low noise No vibration

Noise below 80 dB, no vibration, pro-environment, no foundation or anchor bolts required.

No lubrication Maintenance free

100% oil-free air-floating bearing system to avoid secondary pollution, no need for regular maintenance and replacement of bearings.

Highly integrated Easy to install

The whole machine is highly integrated, small in size, light in weight and easy to install.

Product Comparison

Compress mode

Flow regulation range

Surge

Bearing type

Bearing life

The motor type

Motor starter

Noise(dB)

Vibration

Lubrication

Speed

Working condition

adaptability

Environmental

requirements

Air suspension centrifugal blower

centrifuge

45-100%

Yes

Air bearing

20 years

High speed permanent-magnet synchronous motor

Variable frequency start

70-80dB

100% lubricant-free

20000-100000rpm

Need more ideal and stable working conditions

High environmental requirements for dust, humidity, etc

Roots blower

Volumetric

Unable to adjust

Antifriction bearing

1～2 years

Induction motor

hard to start

>100dB

very badly

Replace the grease or oil periodically

≤3000rpm

For changing working conditions, the performance can remain stable

In a harsh environment with higher dust and humidity,fault tolerance is higher and more reliable

Core Technology

Three-dimensional impeller

Precision manufacturing of aviation aluminum, strong corrosion resistance;

Precision manufactured by 5-axis machining center, the tolerance is kept below 5/1000 mm;

The high-order modal calculation obtains the optimal solution of the full arc of the impeller, avoiding turbulence and reducing over speed blocking;

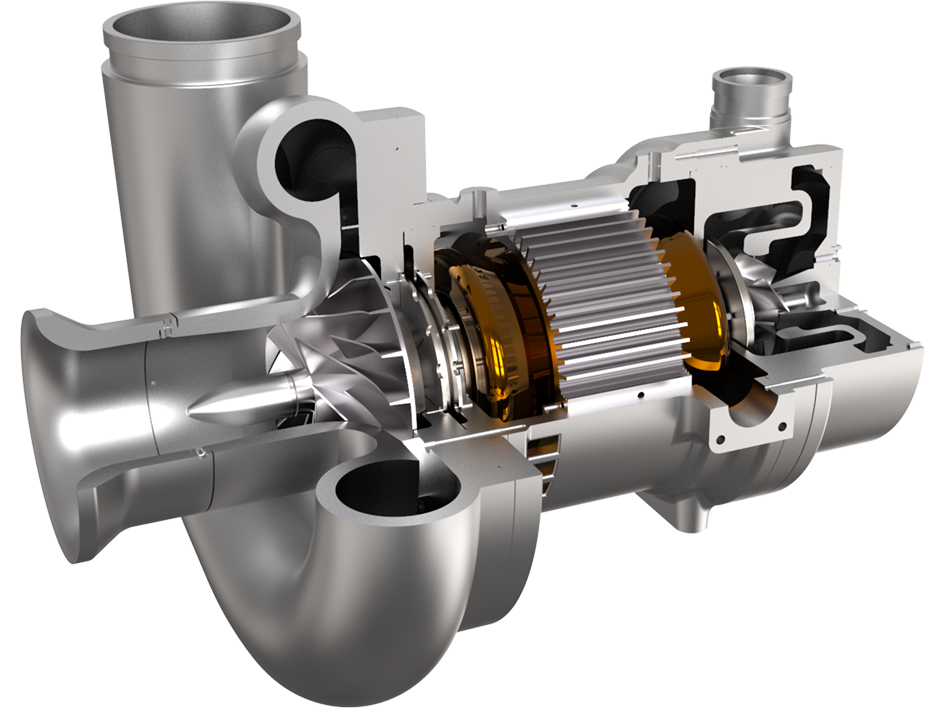

High-speed permanent magnet motor

Using high-efficiency permanent magnet synchronous motor (PMSM), the efficiency is 96%;

the impeller is directly connected to the shaft, and the power transmission efficiency can reach 100%;

the aerodynamic engineering technology, the speed can reach more than 100,000 rpm;

the insulation grade is H class (Maximum temperature resistance 180°C);

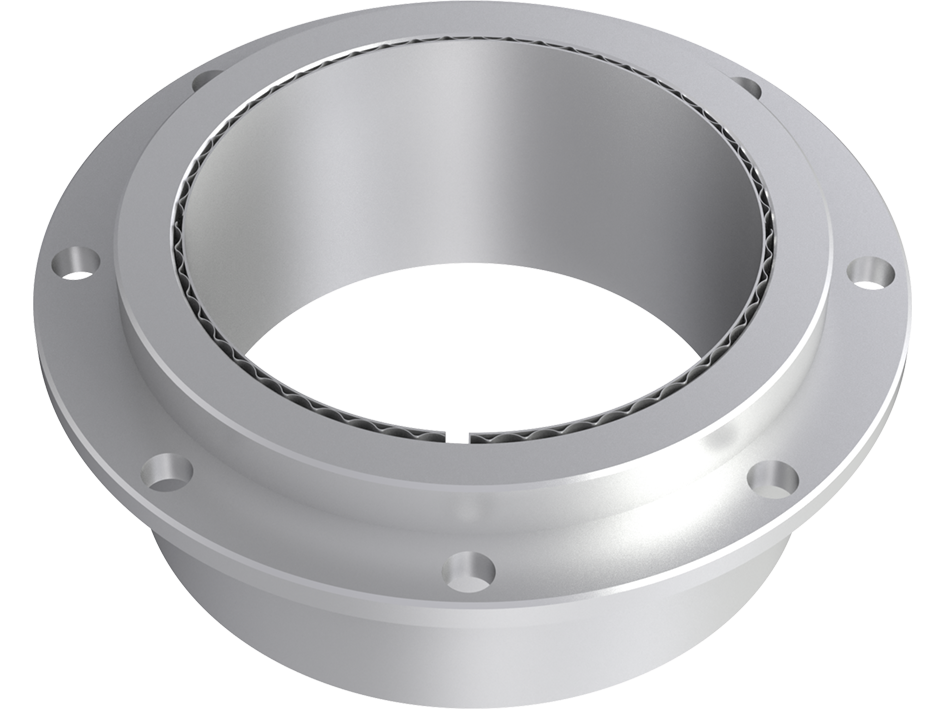

Air suspension bearing

Use high-speed rotating centrifugal force to suspend itself;

The hydrodynamic force in the radial bearing forms a buoyant force;

Relying on air pressure film to form fluid lubrication, no contact and no wear.

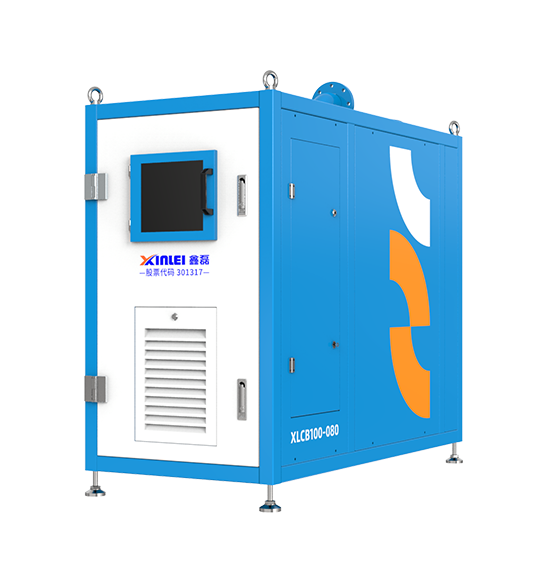

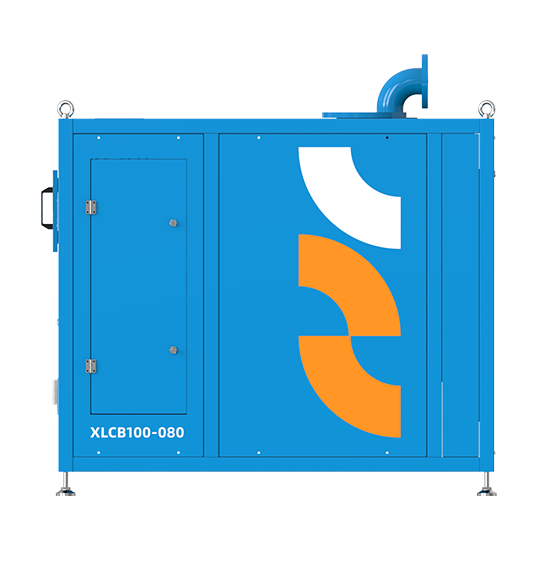

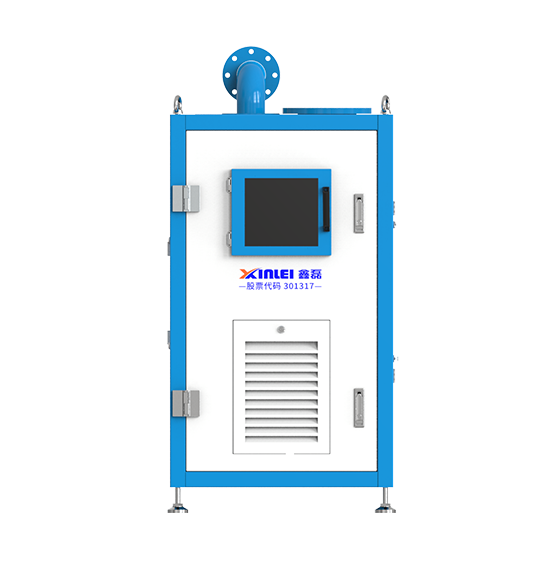

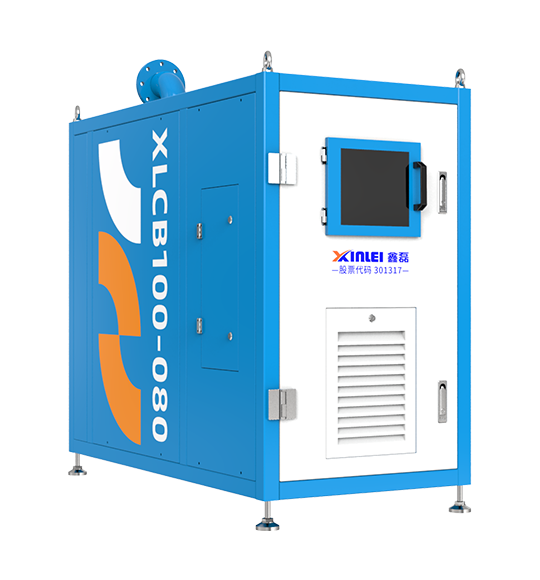

Whole Structure

PLC electronic control system

- Adopt international brand PLC, real-time monitoring system operation data and trajectory, multiple protection and early warning functions;

-Internet of things database management to set up a background service platform, and modular management of equipment energy efficiency.

Permanent magnet high-speed host

-The optimized design of PMSM permanent magnet synchronous motor rotates at high speed, the efficiency can reach more than 96%, and accurate speed control can be carried out through the frequency converter;

-Precision machining ternary flow impeller;

- Non-contact air suspension bearing;

-Two-stage air-cooled self-cooling method.

High efficiency inverter

-Adopt well-known brand inverter, high stability and reliability;

-Provide miniaturization algorithm for high-speed rotation;

-Adjust the fan air volume through the frequency converter, the adjustable range is 450/o-lQQOfc;

-Equipped with a backup capacitor inside, which can quickly and safely make the equipment slow down and stop in the event of a power failure.

Intelligent operation panel

-Real-time monitoring of equipment operation on the touch screen;

Intelligent remote control;

-With anti-surge protection function, it provides a variety of working modes;

-Automatic fault alarm, it is easy to analyze the cause of the fault.

IOT Technology

The cloud platform can record and provide the operating status and operating parameters of the wind turbines bound to the platform, as well as perform fault alarm and data recording analysis. Users can log in to the platform to realize remote monitoring and energy-saving settings management, enabling users to realize real-time equipment management. At present, the IoT cloud platform provides ANDRIOD, IOS, and PC clients, and open interfaces to link with third-party software such as ERP, providing users with more possibilities.

Statistical analysis of gas data to help enterprises make business decisionsStable air pressure, scientific energy saving of the wholeUse gas on demand to avoid wasting energyEquipment operation daily records, maintenance and daily management are more convenientReal-time monitoring of energy consumption, real-time data collectionVisualize equipment running status and view real-time working statusEquipment remote management, intelligent joint control
